How to Install a Watts Water Regulator Step-by-Step Without a Plumber
A pressure reducing valve (PRV) is a straightforward device that helps prevent excessive municipal pressure from damaging home plumbing. Many water mains deliver well over 100 psi, and some systems exceed 200 psi. Most plumbing codes call for a PRV when incoming pressure tops about 80 psi. For many homes, a 50–70 psi target supports plumbing protection with comfortable showers, reliable fixtures, and smooth irrigation performance.

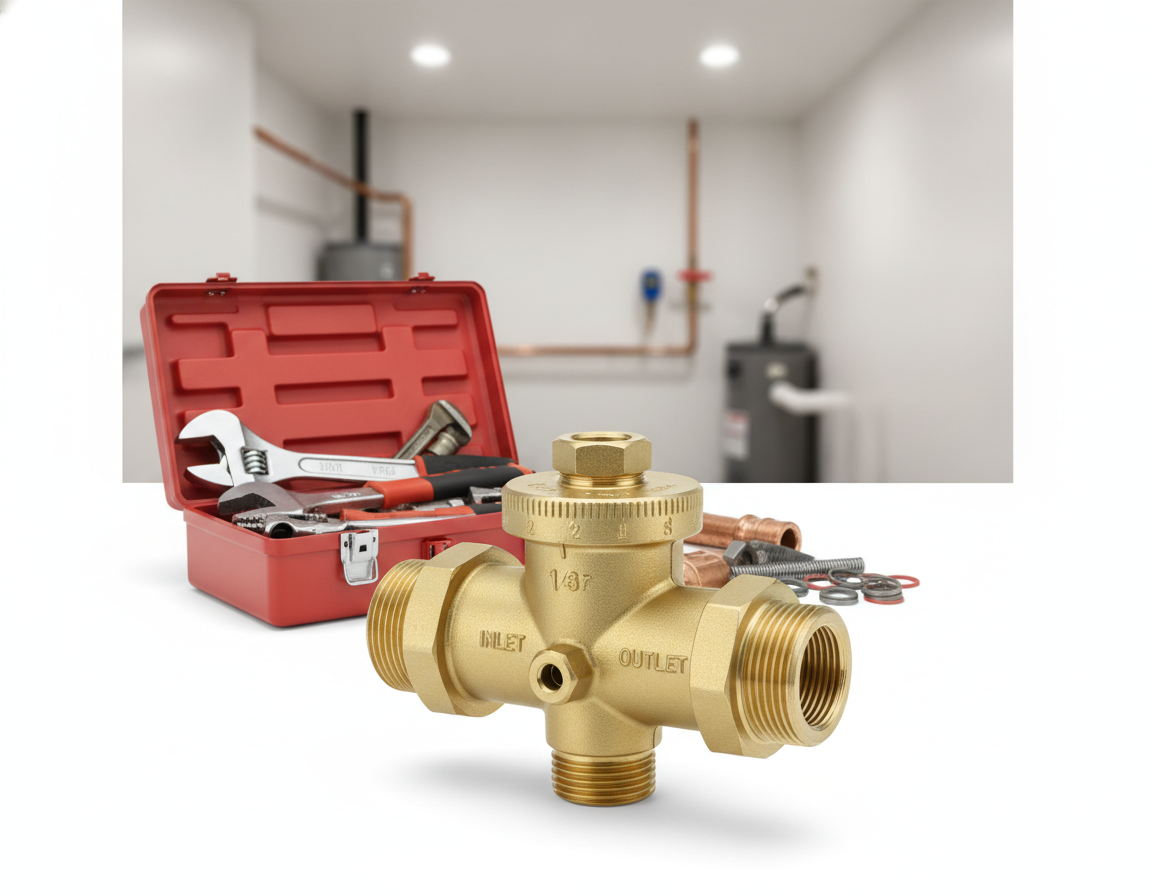

Watts Water Pressure Regulator
Watts has supplied water control products for more than a century, and its Watts Water Regulator models cover common residential needs. Watts WPRVs typically use a spring-operated diaphragm and seat assembly to reduce and steady inlet pressure. Standard residential models, such as LF25AUB and LFN55B, fit 1/2″–2″ lines with adjustable ranges usually between 25 and 75 psi.
Installing a Watts Water Pressure Regulator just after the water meter is the usual practice. Proper sizing and placement reduce noise, avoid premature valve wear, and ensure steady performance. Many Watts regulators offer features like built-in strainers, gauge ports, and thermal-expansion bypass options for modern plumbing requirements.
A homeowner can check regulated pressure by attaching a simple pressure gauge to an outdoor hose bib. When pressure drifts or the regulator cannot hold its setpoint, a licensed plumber should check the diaphragm, seat, fittings, and related parts. Installation Parts Supply carries common Watts Regulator models, repair parts, gauges, and accessories for residential PRV installations.
- A PRV helps protect home plumbing from high municipal pressure and is commonly required when supply pressure exceeds about 80 psi.
- Watts Water Pressure Regulator models use a spring-loaded diaphragm to stabilize pressure.
- Typical residential target pressure is 50–70 psi to balance protection and performance.
- For best results, install the regulator near the meter and size it with the manufacturer’s flow-capacity tables.
- Use a hose-bib gauge for pressure checks, and source common Watts parts through Installation Parts Supply.
Why Install A Pressure Regulator For Home Protection And Savings
High municipal main pressures can exceed 200 psi, placing heavy stress on home plumbing. A correctly adjusted pressure regulator lowers that incoming pressure to a safer, more manageable range. This protects pipes and fixtures and stabilizes flow when supply pressure fluctuates. Many codes require a pressure reducing valve for mains over 80 psi, making a Watts Water Pressure Regulator a common solution.
Protection For Pipes, Fixtures, And Appliances
Too much pressure can lead to pinhole leaks, cracked fittings, worn cartridges, and premature appliance failure in water heaters, washers, and similar equipment. A Watts Water Regulator installed at the building inlet helps reduce damaging pressure spikes before they reach the home. Stable downstream pressure lowers the risk of burst pipes while easing strain on valves, fittings, and fixture cartridges.
Water, Energy, And Wastewater Savings
Flow increases sharply with pressure; roughly twice the water can flow at 150 psi compared with 50 psi. Reducing supply pressure can lower household water consumption and decrease the energy required for hot-water use. Watts literature shows that a pressure reducing valve can trim hot-water energy use in many homes, helping reduce water waste and utility bills.
Municipal sewer fees often reflect meter volumes. Reducing consumption with a residential PRV can benefit owners by lowering wastewater charges. For compatible parts, Installation Parts Supply carries Watts regulators and accessories that can support code compliance and water-efficiency goals.
Better Comfort And Longer System Life
Target pressures between 60 and 70 psi provide steady shower performance without banging or humming. Stable regulated pressure can help appliances operate more consistently and may extend the life of water heaters, valves, and fixture parts. Adding thermal expansion controls when needed prevents T&P valve nuisance discharge, keeping the system quieter and more reliable.
Monthly pressure checks at an easy-to-reach hose bib can confirm settings and reveal pressure changes early. Homeowners who pair a quality Watts Water Pressure Regulator with proper accessories gain the main residential PRV benefits of protection, savings, and long-term reliability.
Watts Water Pressure Regulator
Watts offers many pressure-regulator options for residential and light-commercial applications. The product range includes compact direct-acting regulators as well as larger pilot-operated valves. Homeowners and plumbers can select models according to pipe size, flow demand, space, and connection requirements. These regulators are known for dependable performance and recognized certifications.
Common WPRV Models And Product Families
For smaller residential needs, models such as LF25AUB and LFU5B suit 1/2″ to 2″ mains. They offer adjustable ranges near 25–75 psi. Larger capacity lines, such as LF223 and LF115, serve higher flow demands and pressures. Specialty series, including SS263AP and P60, meet stainless and food-grade requirements.
Installation Parts Supply offers these common lines with several end-connection choices. Available connection styles may include threaded, solder, PEX, CPVC, press, and quick-connect fittings. That range of choices makes it easier to match the valve to different plumbing materials and installation layouts.
Manufacturers supply flow-capacity tables and performance curves to help select the correct regulator. It is important to choose a model that meets expected flow and desired downstream pressure. This ensures enough margin for peak demand.
Key Features And Certifications
Many Watts Regulator models offer built-in strainers, EZ-set adjustment features, gauge ports, and covers designed for easier service. These features make service and maintenance simpler. Lead-free wetted parts help meet current potable-water requirements and regulatory limits.
Many models carry certifications such as NSF 61-G/372 and ASSE 1003. Those approvals help provide confidence for domestic potable-water installations. Special options, including stainless construction and FDA-approved materials, are available for more specialized uses.
Installation Parts Supply typically lists model specifics so homeowners and plumbers can confirm approvals and end connections before ordering. Confirming these details ahead of time can avoid ordering mistakes and installation delays.
How The Valve Works: Direct-Acting Vs. Pilot-Operated
Direct-acting valves use a spring-loaded diaphragm and seat to control flow. They respond quickly and suit typical residential loads. The LF25AUB is a common example, providing stable control for single-family systems.
Pilot-operated designs separate sensing and main valve stages. A pilot senses downstream pressure and controls the main valve for stable performance at high flows. Models like LF223 and LF115 are useful on larger mains and commercial systems where stable setpoints and minimal drift matter.
Install the regulator near the main shutoff or meter for accurate downstream control. Accessible gauge ports simplify checks and adjustments during setup and service.
Sizing, Selection, And Installation Best Practices For Reliable Home Use
Selecting the proper regulator starts with realistic demand estimates and a clear installation plan. Manufacturer curves and capacity tables should be used to match valve flow rates with household demand. For stable performance, the regulator should operate near the middle of its rated range rather than at an extreme. For high inlet pressures or large reduction ratios, staged approaches can extend valve life and improve control.
How To Size A Regulator Correctly
Start by calculating peak flow for fixtures, irrigation, and appliances. Then compare that demand with Watts Water Pressure Regulator capacity data at typical selection points, such as the 20 psi fall-off shown in manufacturer tables. Remember that minimum flow through the valve should be 10–15% of the maximum desired flow.
Do not oversize the valve, because oversized regulators can contribute to wire drawing, instability, and noise. Undersized valves can starve downstream demand. For varying flows, select a valve that covers expected pressures and flows without running at the extreme ends of its curve.
Recommended Installation Configurations
Place the regulator just after the meter or main shutoff, and include isolation valves plus unions for easier service. When inlet pressure exceeds about 150–200 psi, or when the reduction ratio approaches 3:1, use two regulators in series to divide the pressure drop.
For continuous service, redundancy, or widely varying peak flows, two regulators installed in parallel can work well. Set one valve about 10 psi higher than the other to stage flow response. Watts guidance commonly places the lower-set valve in the main run and the higher-set valve on the saddle to simplify maintenance and better match total capacity to peak demand.
Practical Installation Tips And Useful Accessories
Select end connections that match the plumbing material, such as PEX, CPVC, press, sweat, or flanged options, so installation is cleaner and code-appropriate. Include unions, isolation shutoffs, and tailpiece kits so the Watts Water Regulator can be serviced or removed without cutting the line. Install a gauge on the downstream side so the setpoint and performance can be verified.
Consider models with thermal expansion bypass when a check valve or backflow preventer is present, but install a dedicated expansion tank for closed-system control. For larger systems, LR115-style and other automatic control valves from 1 1/4″–16″ can be installed in parallel or series to increase capacity, control, and redundancy.
| Installation Requirement | Best Practice | Why it helps |
|---|---|---|
| Pressure selection | Match GPM demand to Watts capacity tables using the stated fall-off point | Helps the valve operate in a stable mid-range |
| Excessive incoming pressure | Install two regulators in series when inlet pressure is about 150–200 psi or higher | Shares the load and helps extend regulator life |
| Wide flow variation | Use parallel regulators with slightly different setpoints | Keeps flow available during service or demand spikes |
| Repair access | Plan for shutoffs, unions, gauges, and spare parts | Makes repairs faster and avoids downtime |
| Expansion control | Choose bypass-capable regulators and add an expansion tank | Protects the system from expansion-related pressure spikes |
| Parts supply | Source Watts regulators, repair kits, gauges, and accessories | Installation Parts Supply stocks compatible parts for complete installs |
How To Maintain, Troubleshoot, And Replace A Regulator
Regular maintenance extends the life of a pressure regulator and prevents unexpected failures. Inspect the regulator monthly or quarterly for drips, leaks, corrosion, and damaged fittings. Also clean or replace integral strainers if flow appears restricted. Ensure unions and a bypass line are accessible for easier maintenance.
Verify downstream pressure with a gauge at a hose bib or water heater. Residential targets are usually around 60–70 psi and should not exceed 80 psi. Use this reading during inspections and after adjustments to confirm settings.
Routine Checks And Simple Maintenance
Look for slow leaks, loose fittings, and mineral buildup. When debris is visible, remove and clean the strainer screen according to the manufacturer’s instructions. Apply light lubrication to external adjustment components to prevent seizing. Keep a simple log of inspection dates, pressure readings, and adjustments so pressure trends are easier to spot.
Common Symptoms Of A Failing Regulator And Diagnostics
Watch for fluctuating pressure, noisy pipes, or a humming regulator. Pressure that stays too high or too low can also point to a regulator problem. If the regulator cannot hold a setting, it may have a worn seat, damaged diaphragm, debris, or internal wear. Use multiple pressure readings to distinguish supply-side issues from regulator faults.
Service Life, Repairs, And Replacement Guidance
A regulator often lasts about 10–15 years, though service life depends on water quality, usage patterns, and installation conditions. Ongoing leaks, corrosion, pressure instability, or repeat failures usually mean replacement should be considered. Watts provides model-specific repair parts, and many issues can be corrected with a suitable PRV repair kit.
When choosing repair, follow manufacturer instructions and use genuine parts from trusted sources. Installation Parts Supply offers Watts repair kits, gauges, and replacement regulators. For difficult problems like a damaged diaphragm, worn seat, or persistent pressure drift, have a licensed plumber diagnose the regulator and recommend repair or replacement.
When replacing an older regulator, consider newer Watts models with EZ-Set adjustment, gauge ports, thermal bypass features, or improved capacity. Correct installation, regular inspection, and prompt troubleshooting help protect downstream plumbing and extend service life.
Conclusion
A Watts Water Pressure Regulator is important for safe, efficient home plumbing. Models such as LF25AUB and LFN55B are common, while LF223 and P60 suit higher-demand needs. They lower high pressure to safer levels and help protect the home.
Choosing the right size and following installation steps are key. Regular checks are also important. Use Watts Regulator tables, curves, and model data to match the valve to household demand. A basic pressure-gauge test can confirm whether the system is operating at the desired pressure.
If problems persist, get professional help. Regular maintenance and genuine parts are important for lasting performance. Installation Parts Supply provides authentic Watts valves, repair kits, gauges, and accessories for U.S. residential projects.
This guide shows the value of a well-chosen Watts Water Pressure Regulator. It saves on repairs, water, and energy, and extends system life. Always follow manufacturer guidelines and seek expert advice when needed.
